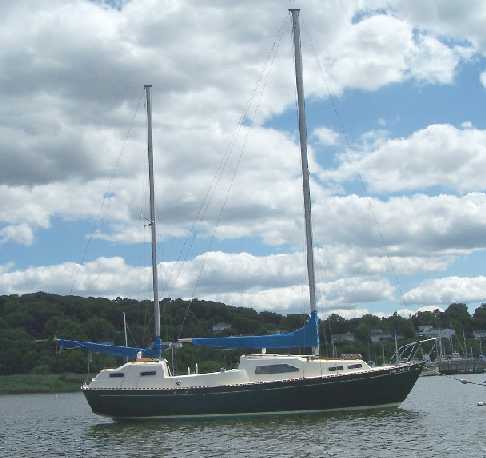

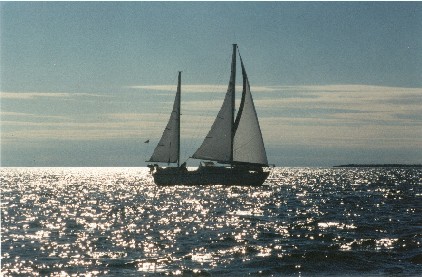

Grampian 34 (Center Cockpit)
Designed in 1973, based on the Triangle 32 and reworked in-house by Axel Schmidt — about 50 built.
Photos
Specifications
| L.O.A. | 33' 7" | Hull | Fibreglass |
|---|---|---|---|
| L.W.L. | 26' 5.5" | Power | Atomic 4 |
| Beam | 10' 0" | Fuel Tank | 26 galls |
| Draft | 5' 0" | Displacement | 12,000 lbs |
| Water Tank | 45 galls | Headroom | 7' 0" |
| Berths | 7 |
Sail Area
| Sloop | Ketch | |
|---|---|---|
| Main | 271 sq. ft. | 198 sq. ft. |
| Jib | 185 sq. ft. | 175 sq. ft. |
| Genoa #1 | 368 sq. ft. | 289 sq. ft. |
| Genoa #2 | 285 sq. ft. | 228 sq. ft. |
| Genoa #3 | 240 sq. ft. | — |
Specifications on sailboatdata.com
Figures are transcribed from the sailboatdata.com record linked below and may differ from the owners’ figures elsewhere on this page. Metric values are theirs.
| Hull type | Fin keel, rudder on skeg | Rig | Masthead ketch |
|---|---|---|---|
| L.O.A. | 33.58 ft / 10.24 m | L.W.L. | 26.46 ft / 8.07 m |
| Beam | 10.00 ft / 3.05 m | Draft | 5.00 ft / 1.52 m |
| Displacement | 12,000 lb / 5,443 kg | Ballast | 5,170 lb / 2,345 kg |
| Sail area (reported) | 551 ft² / 51.19 m² | Construction | Fibreglass |
| First built | 1972 | Last built | 1977 |
| Number built | 50 | Builder | Grampian Marine Ltd. (Canada) |
| Designer | Charles Angle / Axel Schmidt | Engine (original) | Volvo |
Rig and sail particulars
| I | 38.25 ft / 11.66 m | J | 10.54 ft / 3.21 m |
|---|---|---|---|
| P | 33.00 ft / 10.06 m | E | 12.00 ft / 3.66 m |
| PY (mizzen) | 25.67 ft / 7.82 m | EY (mizzen) | 9.50 ft / 2.90 m |
| S.A. fore | 201.58 ft² / 18.73 m² | S.A. main | 198.00 ft² / 18.39 m² |
| S.A. total (100% fore + main) | 399.58 ft² / 37.12 m² | S.A. / Displ. (from rig) | 12.24 |
| Est. forestay length | 39.68 ft / 12.09 m |
Calculated ratios
| S.A. / Displ. | 16.88 | Bal. / Displ. | 43.08 |
|---|---|---|---|
| Displ. / Length | 289.18 | Comfort ratio | 30.20 |
| Capsize screening | 1.75 | S# | 1.41 |
| Hull speed | 6.89 kn | Pounds / inch immersion | 945.44 |
Their notes: Based on the earlier Triangle 32; the Grampian 34 is entirely different from the later Grampian 2-34.
Source: Grampian 34 — sailboatdata.com · related: Triangle 32. Ratio definitions are on sailboatdata.
Jibs and genoas
Headsails are named by how far they overlap the mast: the LP (from the clew straight to the luff) as a percentage of J, the base of the foretriangle from the mast to the forestay.
Usual headsail sizes for the sloop
| Name | LP % | LP | Area |
|---|---|---|---|
| #1 genoa | 150–155% | 18′ 0″ – 18′ 7″ | about 365–377 ft² |
| #2 genoa | 130–135% | 15′ 7″ – 16′ 2″ | about 317–329 ft² |
| Lapper (110% jib) | 110% | 13′ 2″ | about 268 ft² |
| Working jib or #3 | 90–100% | 10′ 10″ – 12′ 0″ | about 219–244 ft² |
| Heavy-weather jib | — | — | up to 226 ft² |
| Storm jib | — | — | up to 84 ft², with a luff up to 27′ 9″ |
Worked out from I = 41′ and J = 12′ (from Good Old Boat): a forestay of about 42′ 9″, and a full-hoist luff of about 40′ 7″ (95% of the forestay; area ≈ ½ × luff × LP). The heavy-weather and storm jib limits are World Sailing’s offshore rules: 13.5% and 5% of I², and a storm jib’s luff no more than 65% of the forestay.
Usual headsail sizes for the ketch
| Name | LP % | LP | Area |
|---|---|---|---|
| #1 genoa | 150–155% | 15′ 10″ – 16′ 4″ | about 298–308 ft² |
| #2 genoa | 130–135% | 13′ 8″ – 14′ 3″ | about 258–268 ft² |
| Lapper (110% jib) | 110% | 11′ 7″ | about 218 ft² |
| Working jib or #3 | 90–100% | 9′ 6″ – 10′ 6″ | about 179–199 ft² |
| Heavy-weather jib | — | — | up to 197 ft² |
| Storm jib | — | — | up to 73 ft², with a luff up to 25′ 9″ |
Worked out from I = 38.25′ and J = 10.54′: a forestay of about 39′ 8″, and a full-hoist luff of about 37′ 8″ (95% of the forestay; area ≈ ½ × luff × LP). The heavy-weather and storm jib limits are World Sailing’s offshore rules: 13.5% and 5% of I², and a storm jib’s luff no more than 65% of the forestay.
The original sails
| Sail | Area | LP at full hoist |
|---|---|---|
| Sloop #1 genoa | 368 ft² | about 18′ 2″ (151%) |
| Sloop #2 genoa | 285 ft² | about 14′ 1″ (117%) |
| Sloop #3 genoa | 240 ft² | about 11′ 10″ (99%) |
| Sloop jib | 185 ft² | about 9′ 1″ (76%) |
| Ketch #1 genoa | 289 ft² | about 15′ 4″ (145%) |
| Ketch #2 genoa | 228 ft² | about 12′ 1″ (115%) |
| Ketch jib | 175 ft² | about 9′ 3″ (88%) |
Grampian’s own sail areas, from the specifications above, worked out as if each sail had a full-hoist luff. A small sail with a low percentage may have been cut with a shorter luff.
Good Old Boat gives the ketch’s I and J as 38.33′ and 12.08′; the sizes here use the 10.54′ J listed above.
Boats vary, and a roller furler shortens the luff by a foot or so. Measure your own forestay before ordering a sail, and have the sailmaker check.
