Discovery 7.9
Later version of the Grampian 26, built after Grampian 26 hull No. 1000.
See Grampian History and Grampian 26 History for further information on the Discovery 7.9 and how it differs from the Grampian 26.

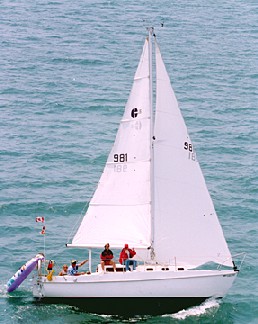

Photos
Specifications
| L.O.A. | 26' | Hull | Fibreglass |
|---|---|---|---|
| L.W.L. | 21' 9" | Spars | Aluminum |
| Beam | 8' 4" | Ballast | 2300 lbs |
| Draft | 3' 9" | Displacement | 5100 lbs |
| Sail Area — Main | 140 ft² | Headroom | 6' 0" |
| Sail Area — Genoa 100% | 178 ft² | Berths | 4 |
Specifications on sailboatdata.com
Figures are transcribed from the sailboatdata.com record linked below and may differ from the owners’ figures elsewhere on this page. Metric values are theirs.
| Hull type | Fin keel, transom-hung rudder | Rig | Masthead sloop |
|---|---|---|---|
| L.O.A. | 26.00 ft / 7.92 m | L.W.L. | 21.75 ft / 6.63 m |
| Beam | 8.33 ft / 2.54 m | Draft | 3.75 ft / 1.14 m |
| Displacement | 5,100 lb / 2,313 kg | Ballast | 2,300 lb / 1,043 kg |
| Sail area (reported) | 318 ft² / 29.54 m² | Construction | Fibreglass |
| First built | 1975 | Last built | 1977 |
| Builder | Grampian Marine Ltd. (Canada) | Designer | Alex McGruer |
Rig and sail particulars
| I | 33.25 ft / 10.13 m | J | 11.00 ft / 3.35 m |
|---|---|---|---|
| P | 28.00 ft / 8.53 m | E | 10.00 ft / 3.05 m |
| S.A. fore | 182.88 ft² / 16.99 m² | S.A. main | 140.00 ft² / 13.01 m² |
| S.A. total (100% fore + main) | 322.88 ft² / 30.00 m² | S.A. / Displ. (from rig) | 17.49 |
| Est. forestay length | 35.02 ft / 10.67 m |
Calculated ratios
| S.A. / Displ. | 17.22 | Bal. / Displ. | 45.10 |
|---|---|---|---|
| Displ. / Length | 221.28 | Comfort ratio | 20.32 |
| Capsize screening | 1.94 | S# | 2.52 |
| Hull speed | 6.25 kn | Pounds / inch immersion | 647.37 |
Their notes: Based on the Grampian 26 but with a raised deck and coachroof. Very few built.
Source: Discovery 7.9 (Grampian) — sailboatdata.com. Ratio definitions are on sailboatdata.
Jibs and genoas
Headsails are named by how far they overlap the mast: the LP (from the clew straight to the luff) as a percentage of J, the base of the foretriangle from the mast to the forestay.
Usual headsail sizes for this rig
| Name | LP % | LP | Area |
|---|---|---|---|
| #1 genoa | 150–155% | 16′ 6″ – 17′ 1″ | about 274–284 ft² |
| #2 genoa | 130–135% | 14′ 4″ – 14′ 10″ | about 238–247 ft² |
| Lapper (110% jib) | 110% | 12′ 1″ | about 201 ft² |
| Working jib or #3 | 90–100% | 9′ 11″ – 11′ 0″ | about 165–183 ft² |
| Heavy-weather jib | — | — | up to 149 ft² |
| Storm jib | — | — | up to 55 ft², with a luff up to 22′ 9″ |
Worked out from I = 33.25′ and J = 11′: a forestay of about 35′ 0″, and a full-hoist luff of about 33′ 3″ (95% of the forestay; area ≈ ½ × luff × LP). The heavy-weather and storm jib limits are World Sailing’s offshore rules: 13.5% and 5% of I², and a storm jib’s luff no more than 65% of the forestay.
The original sails
| Sail | Area | LP at full hoist |
|---|---|---|
| 100% genoa | 178 ft² | about 10′ 8″ (97%) |
Grampian’s own sail areas, from the specifications above, worked out as if each sail had a full-hoist luff.
Boats vary, and a roller furler shortens the luff by a foot or so. Measure your own forestay before ordering a sail, and have the sailmaker check.
