Grampian 2-34

Designed in 1974 — about 50 built.

Photos

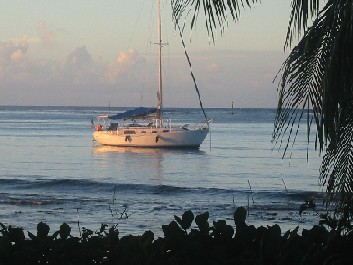

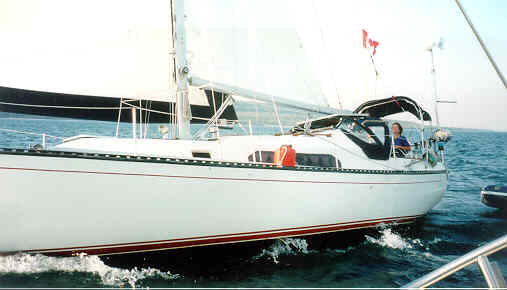

Grampian 2-34 "Mizzalo" Grampian 2-34 "Lydia"

We do not have much information on this model — boats like Lydia and Mizzalo. We'd appreciate any information, especially photos from owners of these fine vessels. Please send it to the Registry.

Specifications

L.O.A.33' 9.25"HullFibreglass
L.W.L.28' 0"PowerAtomic 4
Beam10' 0"Fuel Tank26 galls
Draft5' 0"Displacement12,000 lbs
Water Tank45 gallsHeadroom6' 5"
Berths6

Sail Area

Main222 sq. ft.
Jib299 sq. ft.
Genoa #1492.28 sq. ft.
Genoa #2452 sq. ft.
Genoa #3364.46 sq. ft.

Specifications on sailboatdata.com

Figures are transcribed from the sailboatdata.com record linked below and may differ from the owners’ figures elsewhere on this page. Metric values are theirs.

Hull typeFin keel, rudder on skegRigMasthead sloop
L.O.A.33.75 ft / 10.29 mL.W.L.28.00 ft / 8.53 m
Beam10.00 ft / 3.05 mDraft5.25 ft / 1.60 m
Displacement11,800 lb / 5,352 kgBallast5,170 lb / 2,345 kg
Sail area (reported)521 ft² / 48.40 m²ConstructionFibreglass
First built1974Last built1977
Number built50BuilderGrampian Marine Ltd. (Canada)
DesignerR. van der StaadEngine (original)Volvo MD2B diesel, 25 hp
Fuel26 gal / 98 LWater45 gal / 170 L

Rig and sail particulars

I42.75 ft / 13.03 mJ14.00 ft / 4.27 m
P37.00 ft / 11.28 mE12.00 ft / 3.66 m
S.A. fore299.25 ft² / 27.80 m²S.A. main222.00 ft² / 20.62 m²
S.A. total (100% fore + main)521.25 ft² / 48.43 m²S.A. / Displ. (from rig)16.15
Est. forestay length44.98 ft / 13.71 m

Calculated ratios

S.A. / Displ.16.14Bal. / Displ.43.81
Displ. / Length239.97Comfort ratio28.57
Capsize screening1.76S#2.19
Hull speed7.09 knPounds / inch immersion1,000.47

Their notes: Grampian built an earlier, entirely different 34 based on the Triangle 32. When Grampian went bankrupt in 1977 the moulds for the 2-34 were sold, and a few more were built elsewhere as the Seaforth 34.

Source: Grampian 2-34 — sailboatdata.com. Ratio definitions are on sailboatdata.

Jibs and genoas

Headsails are named by how far they overlap the mast: the LP (from the clew straight to the luff) as a percentage of J, the base of the foretriangle from the mast to the forestay.

Sails measured for the Grampian 2-34

SailLuffLeechFootLPArea
Jib35′ 9″30′ 2″16′ 0″13′ 5″ (96%)about 240 ft²
Storm jib22′ 0″19′ 0″9′ 6″8′ 2″ (58%)about 90 ft²

Measurements from Good Old Boat’s sail database; the LP and areas are worked out from them. One measured sail is left out because its sides can’t all be right.

Usual headsail sizes for this rig

NameLP %LPArea
#1 genoa150–155%21′ 0″ – 21′ 8″about 449–464 ft²
#2 genoa130–135%18′ 2″ – 18′ 11″about 389–404 ft²
Lapper (110% jib)110%15′ 5″about 329 ft²
Working jib or #390–100%12′ 7″ – 14′ 0″about 269–299 ft²
Heavy-weather jib——up to 246 ft²
Storm jib——up to 91 ft², with a luff up to 29′ 3″

Worked out from I = 42.75′ and J = 14′: a forestay of about 45′ 0″, and a full-hoist luff of about 42′ 9″ (95% of the forestay; area ≈ ½ × luff × LP). The heavy-weather and storm jib limits are World Sailing’s offshore rules: 13.5% and 5% of I², and a storm jib’s luff no more than 65% of the forestay.

The original sails

SailAreaLP at full hoist
#1 genoa492.28 ft²about 23′ 0″ (165%)
#2 genoa452 ft²about 21′ 2″ (151%)
#3 genoa364.46 ft²about 17′ 1″ (122%)
Jib299 ft²about 14′ 0″ (100%)

Grampian’s own sail areas, from the specifications above, worked out as if each sail had a full-hoist luff. A genoa over 160% is larger than the 150–155% that’s usually the biggest today.

Boats vary, and a roller furler shortens the luff by a foot or so. Measure your own forestay before ordering a sail, and have the sailmaker check.
