Grampian 28
Designed in 1975 by Rolf van der Sleen — about 150 built in Canada.
Photos
Drawing

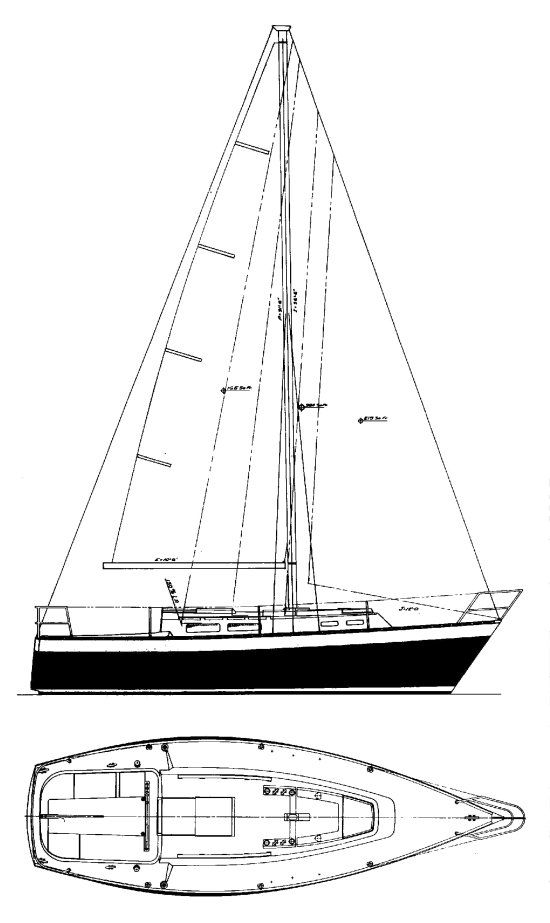

Builder's sail plan, profile and deck plan for the Grampian 28, Rolf van der Sleen's 1975 design. Click to open the full-size drawing.
Source: Grampian 28 on listingsport.com.
Specifications on sailboatdata.com
Figures are transcribed from the sailboatdata.com record linked below and may differ from the owners’ figures elsewhere on this page. Metric values are theirs.
| Hull type | Fin keel, rudder on skeg | Rig | Masthead sloop |
|---|---|---|---|
| L.O.A. | 28.00 ft / 8.53 m | L.W.L. | 24.50 ft / 7.47 m |
| Beam | 9.50 ft / 2.90 m | Draft | 4.83 ft / 1.47 m (shoal: 3.75 ft / 1.14 m) |
| Displacement | 6,900 lb / 3,130 kg | Ballast | 3,060 lb / 1,388 kg |
| Sail area (reported) | 384 ft² / 35.67 m² | Construction | Fibreglass |
| First built | 1975 | Number built | 107 |
| Builder | Grampian Marine Ltd. (Canada) | Designer | Rolf van der Sleen |
| Engine (original) | Volvo diesel | Fuel | 20 gal / 76 L |
| Water | 20 gal / 76 L |
Rig and sail particulars
| I | 36.50 ft / 11.13 m | J | 12.00 ft / 3.66 m |
|---|---|---|---|
| P | 31.50 ft / 9.60 m | E | 10.50 ft / 3.20 m |
| S.A. fore | 219.00 ft² / 20.35 m² | S.A. main | 165.38 ft² / 15.36 m² |
| S.A. total (100% fore + main) | 384.38 ft² / 35.71 m² | S.A. / Displ. (from rig) | 17.02 |
| Est. forestay length | 38.42 ft / 11.71 m |
Calculated ratios
| S.A. / Displ. | 17.00 | Bal. / Displ. | 44.35 |
|---|---|---|---|
| Displ. / Length | 209.46 | Comfort ratio | 20.81 |
| Capsize screening | 2.00 | S# | 2.60 |
| Hull speed | 6.63 kn | Pounds / inch immersion | 831.64 |
Their notes: The later Intrepid 28, by Cape Dory, was based on this same design and tooling.
Source: Grampian 28 — sailboatdata.com · related: Intrepid 28. Ratio definitions are on sailboatdata.
Jibs and genoas
Headsails are named by how far they overlap the mast: the LP (from the clew straight to the luff) as a percentage of J, the base of the foretriangle from the mast to the forestay.
Sails measured for the Grampian 28
| Sail | Luff | Leech | Foot | LP | Area |
|---|---|---|---|---|---|
| Genoa | 35′ 6″ | 34′ 3″ | 23′ 5″ | 21′ 8″ (180%) | about 384 ft² |
| Genoa | 35′ 6″ | 33′ 6″ | 20′ 0″ | 18′ 6″ (154%) | about 329 ft² |
| Genoa | 35′ 6″ | 33′ 0″ | 17′ 6″ | 16′ 2″ (135%) | about 287 ft² |
Measurements from Good Old Boat’s sail database; the LP and areas are worked out from them. One measured sail is left out because its sides can’t all be right.
Usual headsail sizes for this rig
| Name | LP % | LP | Area |
|---|---|---|---|
| #1 genoa | 150–155% | 18′ 0″ – 18′ 7″ | about 329–339 ft² |
| #2 genoa | 130–135% | 15′ 7″ – 16′ 2″ | about 285–296 ft² |
| Lapper (110% jib) | 110% | 13′ 2″ | about 241 ft² |
| Working jib or #3 | 90–100% | 10′ 10″ – 12′ 0″ | about 197–219 ft² |
| Heavy-weather jib | — | — | up to 179 ft² |
| Storm jib | — | — | up to 66 ft², with a luff up to 25′ 0″ |
Worked out from I = 36.5′ and J = 12′: a forestay of about 38′ 5″, and a full-hoist luff of about 36′ 6″ (95% of the forestay; area ≈ ½ × luff × LP). The heavy-weather and storm jib limits are World Sailing’s offshore rules: 13.5% and 5% of I², and a storm jib’s luff no more than 65% of the forestay.
Boats vary, and a roller furler shortens the luff by a foot or so. Measure your own forestay before ordering a sail, and have the sailmaker check.
