Grampian 23
A trailerable pocket cruiser, built starting in 1972.
About the Grampian 23
The Grampian 23 was not as successful a seller as had been anticipated, with only about 300 being built starting in 1972. All hulls were built in Oakville, ON, but some were fitted out in Edenton, NC. While not many were made, it remains a very popular boat today, especially with those wanting to trailer their boat.

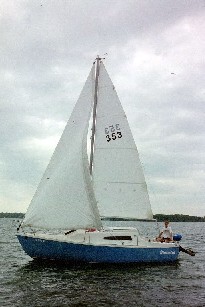

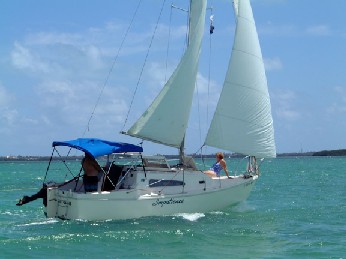

Visit the links below to learn all about this sturdy little boat that many owners have trailered all over North America — boats like Impatience, Marietta, and Qualia.
Photos
Specifications
| L.O.A. | 23' 3" | Sail Area — Main | 110 sq. ft. |
|---|---|---|---|
| L.W.L. | 20' 11" | Sail Area — Jib | 108 sq. ft. |
| Beam | 8' 0" | Sail Area — Genoa #1 | 174 sq. ft. |
| Draft — Keel | 3' 1" | Hull | Fibreglass |
| Draft — C/B | 2'4.5" – 5'4" | Power | Outboard |
| Ballast | 1150 lbs | Displacement | 3200 lbs |
| Berths | 5 | Headroom | 5' 4" (6' 0" at pop-top) |
Specifications on sailboatdata.com
Figures are transcribed from the sailboatdata.com record linked below and may differ from the owners’ figures elsewhere on this page. Metric values are theirs.
| Hull type | Swing keel (fixed fin also offered) | Rig | Masthead sloop |
|---|---|---|---|
| L.O.A. | 23.25 ft / 7.09 m | L.W.L. | 20.93 ft / 6.38 m |
| Beam | 8.00 ft / 2.44 m | Draft | 5.33 ft / 1.62 m (keel down); 2.36 ft / 0.72 m (up) |
| Displacement | 3,200 lb / 1,451 kg | Ballast | 1,033 lb / 469 kg (lead) |
| Sail area (reported) | 241 ft² / 22.39 m² | Construction | Fibreglass |
| First built | 1971 | Last built | 1976 |
| Number built | 450 | Builder | Grampian Marine Ltd. (Canada) |
| Designer | Alex McGruer | Water | 20 gal / 76 L |
Rig and sail particulars
| I | 26.40 ft / 8.05 m | J | 9.90 ft / 3.02 m |
|---|---|---|---|
| P | 23.70 ft / 7.22 m | E | 9.30 ft / 2.83 m |
| S.A. fore | 130.68 ft² / 12.14 m² | S.A. main | 110.21 ft² / 10.24 m² |
| S.A. total (100% fore + main) | 240.89 ft² / 22.38 m² | S.A. / Displ. (from rig) | 17.80 |
| Est. forestay length | 28.20 ft / 8.60 m | Mast height from DWL | 31.00 ft / 9.45 m |
Calculated ratios
| S.A. / Displ. | 17.80 | Bal. / Displ. | 32.28 |
|---|---|---|---|
| Displ. / Length | 155.81 | Comfort ratio | 14.33 |
| Capsize screening | 2.17 | S# | 3.40 |
| Hull speed | 6.13 kn | Pounds / inch immersion | 598.28 |
Their notes: The Grampian 23 was available with either a swing or a fixed fin keel.
Source: Grampian 23 — sailboatdata.com. Ratio definitions are on sailboatdata.
Jibs and genoas
Headsails are named by how far they overlap the mast: the LP (from the clew straight to the luff) as a percentage of J, the base of the foretriangle from the mast to the forestay.
Sails measured for the Grampian 23
| Sail | Luff | Leech | Foot | LP | Area |
|---|---|---|---|---|---|
| Genoa | 25′ 6″ | 23′ 9″ | 14′ 0″ | 12′ 10″ (130%) | about 164 ft² |
| Jib | 23′ 0″ | 20′ 9″ | 10′ 6″ | 9′ 6″ (96%) | about 109 ft² |
| Asymmetrical spinnaker | 27′ 0″ | 25′ 0″ | 16′ 0″ | — | about 324 ft² |
Measurements from Good Old Boat’s sail database; the LP and areas are worked out from them. One measured sail is left out because its sides can’t all be right.
Usual headsail sizes for this rig
| Name | LP % | LP | Area |
|---|---|---|---|
| #1 genoa | 150–155% | 14′ 10″ – 15′ 4″ | about 199–206 ft² |
| #2 genoa | 130–135% | 12′ 10″ – 13′ 4″ | about 172–179 ft² |
| Lapper (110% jib) | 110% | 10′ 11″ | about 146 ft² |
| Working jib or #3 | 90–100% | 8′ 11″ – 9′ 11″ | about 119–133 ft² |
| Heavy-weather jib | — | — | up to 94 ft² |
| Storm jib | — | — | up to 34 ft², with a luff up to 18′ 4″ |
Worked out from I = 26.4′ and J = 9.9′: a forestay of about 28′ 2″, and a full-hoist luff of about 26′ 9″ (95% of the forestay; area ≈ ½ × luff × LP). The heavy-weather and storm jib limits are World Sailing’s offshore rules: 13.5% and 5% of I², and a storm jib’s luff no more than 65% of the forestay.
The original sails
| Sail | Area | LP at full hoist |
|---|---|---|
| Jib | 108 ft² | about 8′ 1″ (81%) |
| #1 genoa | 174 ft² | about 13′ 0″ (131%) |
Grampian’s own sail areas, from the specifications above, worked out as if each sail had a full-hoist luff. A small sail with a low percentage may have been cut with a shorter luff.
Good Old Boat gives the 23’s J as 9.5′; the percentages here use the 9.9′ listed above.
Boats vary, and a roller furler shortens the luff by a foot or so. Measure your own forestay before ordering a sail, and have the sailmaker check.
